Troubleshooting Guide for Galanz Ice Maker

If your Galanz ice maker is not working as expected, this guide will help you troubleshoot common issues. Whether it's not producing ice, making unusual noises, or experiencing water flow issues, follow these steps to resolve the problem.

1. Ice Maker Not Producing Ice

Possible Causes:

• Power supply issue

• Water line not connected or clogged

• Incorrect temperature settings

• Faulty water filter

• Blocked ice mold

• Flashing

Steps to Resolve:

1. Check Power Supply
   Ensure the ice maker is properly plugged in, and check the power source to make sure it’s working. Test the outlet with another device.

2. Check Water Supply
   Confirm the water line is properly connected and not kinked or clogged. If using a water filter, check if it's time to replace it.

3. Check Temperature
   Make sure the freezer temperature is set between 0°F (-18°C) and 5°F (-15°C). If the temperature is too high, the ice maker will not function properly.

4. Clear Blockages in Ice Mold
   Inspect the ice mold for any obstructions. Clear out any ice buildup or debris that might be preventing proper ice formation.

5. Check Ice Tray
   If the ice tray is full, make sure it's properly aligned. An unaligned tray can prevent ice from being produced.

6. Flashing
   If the light of the ice maker is flashing, it is the fault of the ice maker itself. Press ON/OFF (long press 2s) ON the ice maker to turn it OFF and then restart it (long press 2s again) to see if it can be restored to normal. If not, will replace the ice maker

2. Ice Maker Is Making Noise

Possible Causes:

• Normal operational sounds

• Loose parts or ice tray

• Ice build-up causing grinding sounds

Steps to Resolve:

1. Listen for Normal Sounds
   Some sounds, like a low hum or clicking noise, are normal as the ice maker cycles. However, if you hear loud or grinding noises, it could be a sign of a mechanical issue.

2. Check for Loose Parts
   Ensure the ice tray and other components are securely in place. Any loose parts could cause rattling or noise.

3. Defrost Ice Build-up
   If there is a significant ice build-up in the ice maker, it might cause grinding noises. Turn off the unit and allow it to defrost before trying again.

3. Ice Maker Is Leaking Water

Possible Causes:

• Clogged or damaged water line

• Improper installation

• Faulty door seal

Steps to Resolve:

1. Inspect Water Line
   Check the water line for any cracks, kinks, or blockages that could cause leaks. Ensure the water inlet valve is securely connected.

2. Check Installation
   Make sure the ice maker is level. A tilted unit can cause water to leak. Adjust the leveling feet if necessary.

3. Inspect Door Seal
   Ensure the door is sealing tightly when closed. A damaged door seal can cause water leakage. If damaged, replace the seal.

4. Ice Maker Not Dispensing Ice

Possible Causes:

• Ice stuck in the dispenser

• Clogged dispenser chute

• Ice maker not properly aligned

Steps to Resolve:

1. Check for Blocked Ice
   If the ice is stuck in the dispenser, gently tap it to loosen the cubes. Avoid forcing the ice out, as it may damage the mechanism.

2. Clear the Dispenser Chute
   Inspect the ice dispenser chute for blockages or ice jams. Clear any obstructions and clean the chute to ensure smooth ice flow.

3. Re-align Ice Maker
   Ensure the ice maker is properly aligned and that there’s nothing obstructing the dispensing mechanism.

5. Ice Maker Water Doesn’t Freeze Properly

Possible Causes:

• Freezer temperature too high

• Ice tray alignment issues

• Insufficient water supply

Steps to Resolve:

1. Check Freezer Temperature
   Make sure your freezer is operating at the correct temperature (0°F or -18°C). If the temperature is too high, the ice maker won’t freeze water properly.

2. Check Ice Tray Alignment
   Ensure the ice tray is level. If the tray is misaligned, the water may not freeze uniformly.

3. Inspect Water Supply
   Ensure the water supply is consistent and that there’s no interruption in the flow of water into the ice maker.

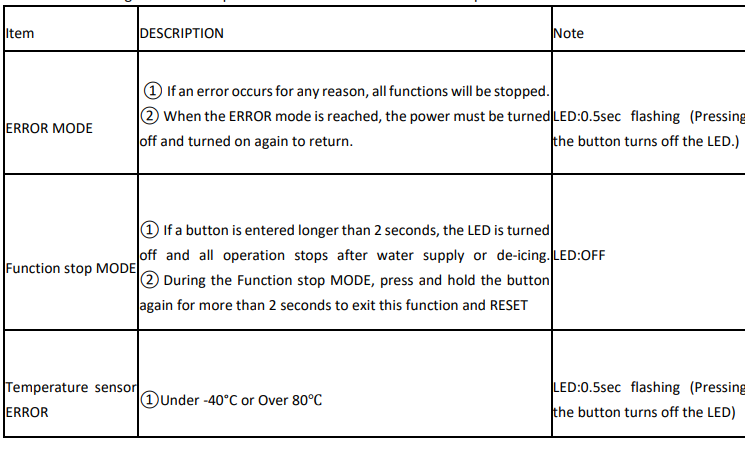

Below is the following: Ice maker specification Error mode and fault description:

6. Water Full" Issue with Ice Maker Sensor

If your ice maker is showing a "Water Full" error despite not having a full water reservoir or is not dispensing water properly, the issue may lie with the water level sensor. Follow these steps to troubleshoot and resolve the problem.

Check the Water Level Sensor for Obstructions

Possible Cause:
The water level sensor could be obstructed by debris or ice build-up, causing it to inaccurately detect the water level.

Steps to Resolve:

1. Turn Off the Ice Maker: Unplug the unit to ensure safety during the inspection.

2. Locate the Water Level Sensor: Depending on the model, the sensor may be located near the water reservoir or inside the water tank.

3. Inspect for Debris or Ice Buildup: Check the sensor for any ice accumulation, dirt, or foreign objects that may be blocking it.

4. Clean the Sensor: Gently clean the sensor with a soft cloth or brush to remove any debris. If ice build-up is the issue, allow the ice maker to thaw or use warm water to clear the obstruction.

5. Reassemble and Test: After cleaning, plug the unit back in and test to see if the "Water Full" message clears.

Inspect the Water Reservoir for Proper Filling

Possible Cause:
The sensor might be incorrectly detecting the water level due to an issue with the water reservoir or the flow of water.

Steps to Resolve:

1. Turn Off and Unplug the Ice Maker.

2. Check Water Supply: Ensure that the water supply to the ice maker is not restricted. Look for kinks, blockages, or leaks in the water line.

3. Inspect Water Reservoir: Open the ice maker's water reservoir and ensure it isn’t overfilled or underfilled. If it's overfilled, check the water inlet valve for malfunctions.

4. Test the Water Flow: Run a small test by filling the reservoir manually and checking if the water level sensor detects it correctly. If the problem persists, the sensor may need recalibration or replacement.

Reset the Ice Maker

Possible Cause:
The sensor or ice maker may have become temporarily uncalibrated, causing a false "Water Full" reading.

Steps to Resolve:

1. Power Off the Ice Maker: Unplug the ice maker from the outlet.

2. Wait for 10-15 Minutes: This will allow the system to reset itself.

3. Power On the Ice Maker: Plug the unit back in and turn it on.

4. Test: Monitor if the "Water Full" error clears after a reset. Sometimes a simple reboot can resolve sensor calibration issues.

Contact Support for Further Assistance

If you’ve tried all the above steps and the "Water Full" issue persists, it may be a more complex issue requiring professional assistance.

• Contact the manufacturer and provide the ice maker's model number and a detailed description of the issue to expedite the support process.
